Type 9900 Transmitter

Member of the SmartPro® Family of Instruments

Product description
The type 9900 Transmitter provides a single channel interface for many different parameters including
Flow, pH/ORP, Conductivity/Resistivity, Salinity, Pressure, Temperature, Level, Dissolved Oxygen, and
other sensors that output a 4 to 20 mA signal. The 9900-1P Transmitter can also be used as a Batch
Controller when a Batch Module and Relay Module are installed.

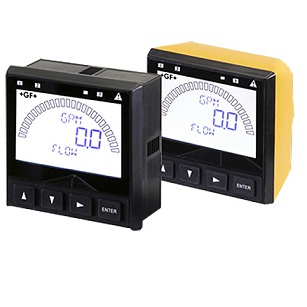

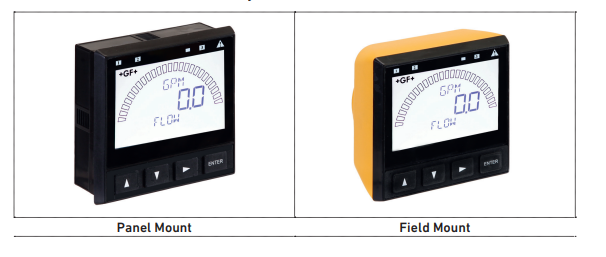

The 9900 is offered in both panel or field mount versions. Both configurations offer an extra large (3.90” x
3.90”) auto-sensing backlit display features “at-a-glance” visibility that can be viewed at 4-5 times the
distance over traditional transmitters. The highly illuminated display and large characters reduce the risk

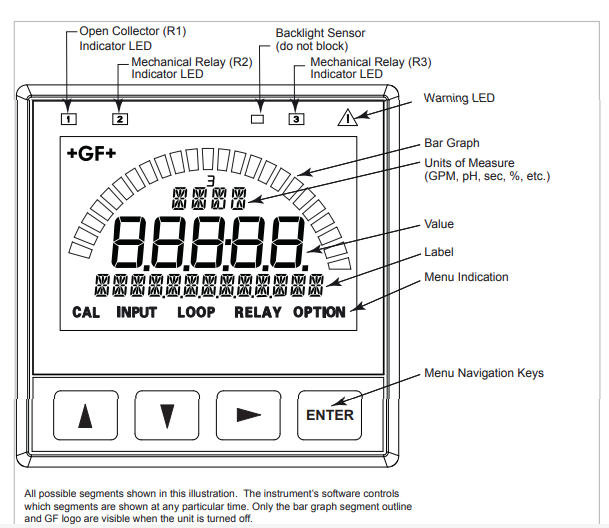

of misreading or misinterpreting the displayed values. The display shows separate lines for units, main
and secondary measurements as well as a “dial-type” digital bar graph.

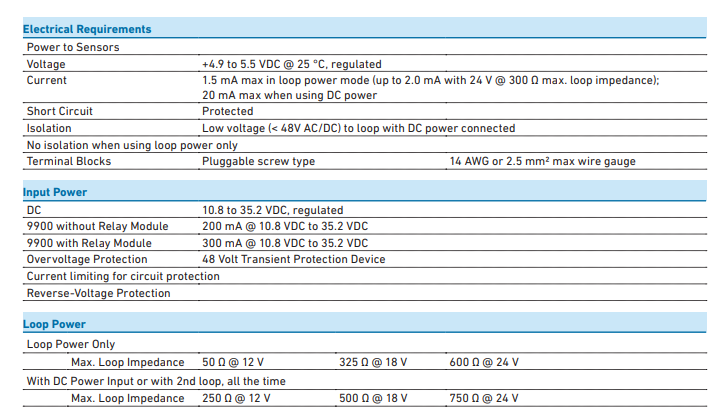

The 9900 can run on 12 to 32 VDC power (24 VDC nominal), and can also be loop powered with compatible
sensors.

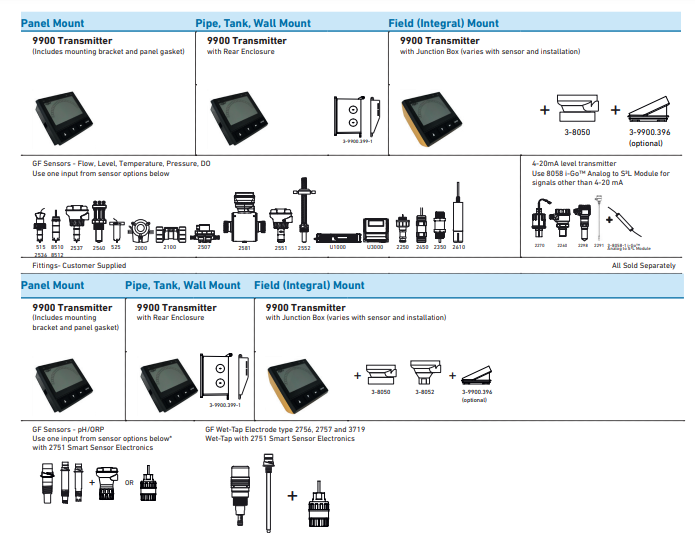

Rear Enclosure kits are available for the 9900-1P Panel Mount. Kit options include either a Hinged Cover
(3-9900.399-1) for wall or pipe mount installations, or a Flat Cover
(3-9900.399-2) designed to fit inside a panel for waterproof protection.
The 9900 offers complete flexibility, plug-in modules allow the unit to easily adapt to meet changing
customer needs. Optional modules include the new Modbus as well as the Relay, Direct Conductivity/
Resistivity, H COMM, Batch, 4 to 20 mA Output, and a PC COMM Configuration Tool. The unit can be used
with default values for quick and easy programming or can be customized with labeling, adjustable
minimum and maximum dial settings, and unit of measure and decimal location choices.

Features
• Modbus Module supports RS485 Serial Modbus Communications
• Multiple sensor types supported with one instrument
• “Dial-type” digital bar graph
• Modules are field installable and replaceable anytime

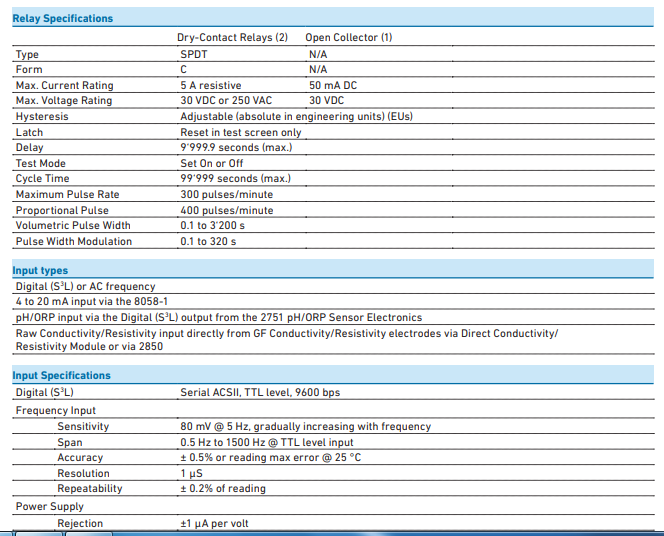

• Optional Relay Module for addition of two drycontact relays
• Optional H COMM Module for two-way communication
• Optional Batch Module for Batch Control
• One 4 to 20 mA output in base unit. One additional 4 to 20 mA
available with optional module
• Rear Enclosure Kits for panel, wall or pipe mounting
• Warning and Relay LED indicators for “at a glance” visibility
• Customizable features including digital label for custom identification
• Optional PC COMM configuration tool for configuration at a PC

Applications
• Wastewater Treatment
• Reverse Osmosis
• Deionization
• Ultra Pure Water
• Two Bed System
• Mixed Bed System
• Chemical Manufacturing/Addition
• Metal and Plastic Finishing
• Fume Scrubber
• Cooling Towers
• Media Filtration
